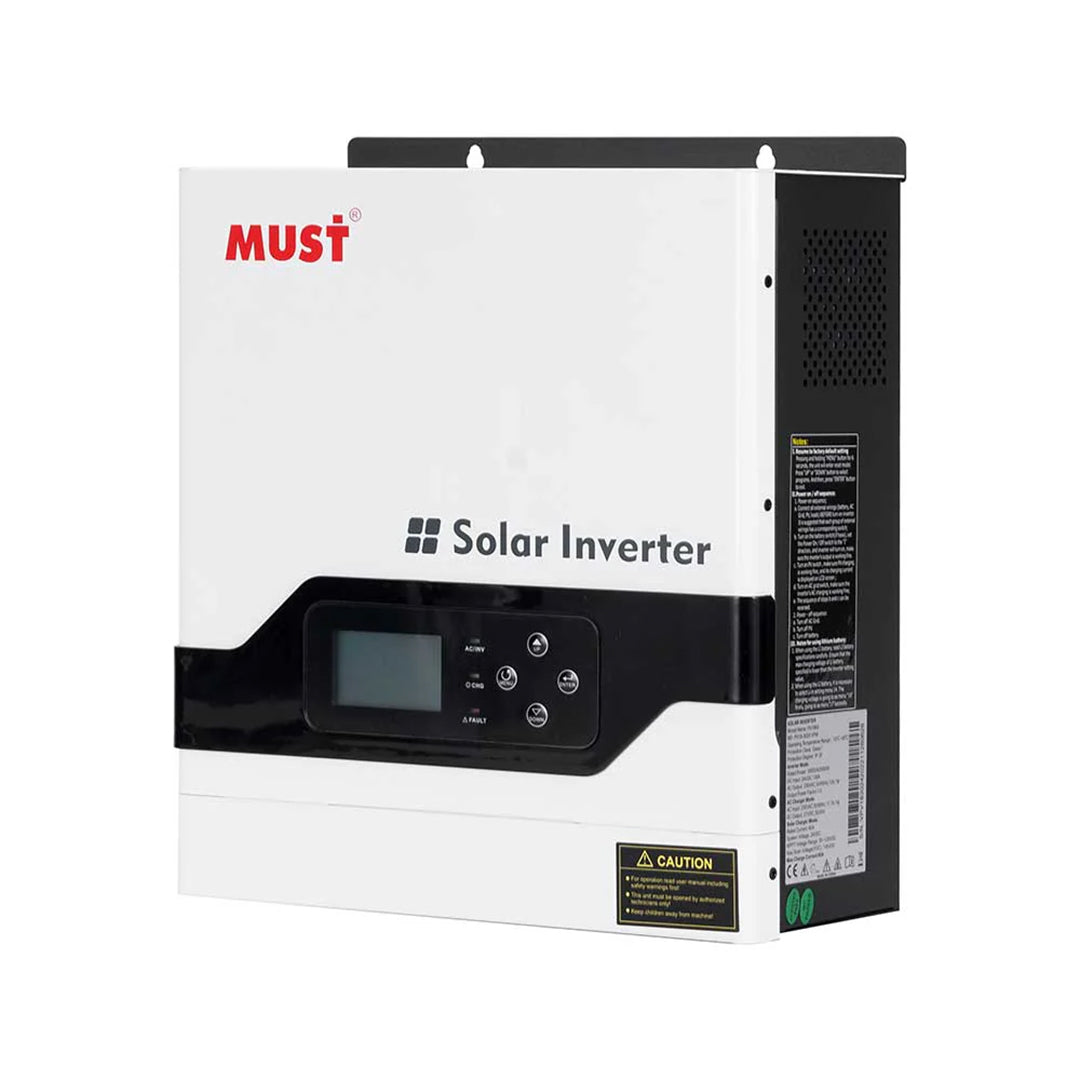

Description
- Rated Power: 1200W (1.2KW)
- Battery System Voltage: 24VDC
- Solar Charge Controller: Built-in MPPT with a maximum solar charge current of 40A
- Maximum PV Array Power: 1000W
- Inverter Efficiency: 90%~93%
- AC Input Voltage Range: 170~280VAC (UPS mode) / 90~280VAC (APL mode)
- Waveform: Pure sine wave
- Transfer Time: 10ms (UPS mode) / 20ms (APL mode)
- Protection Features: Overload, short circuit, and deep discharge protection

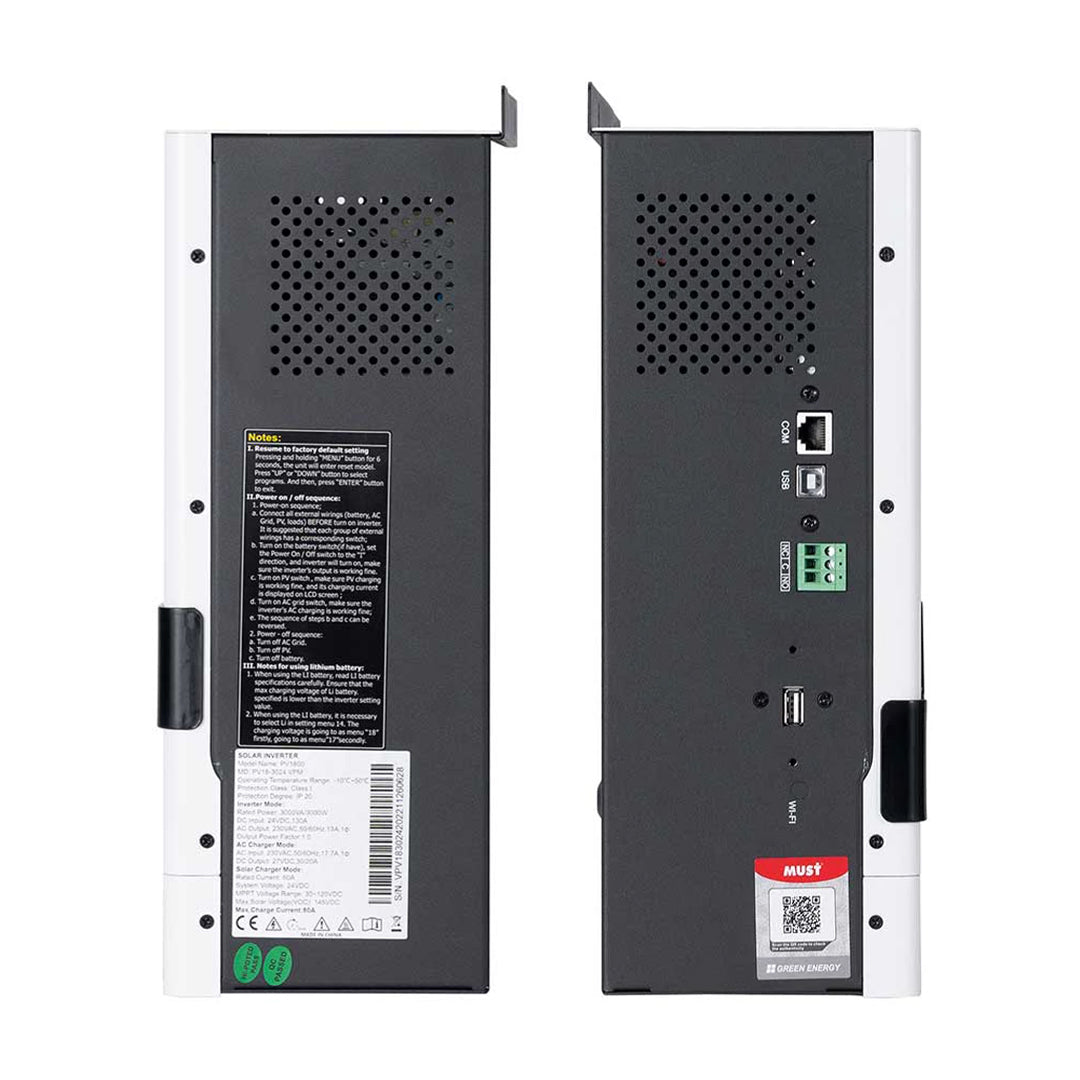

- Additional Features: Cold start function, USB, RS485, CAN monitoring, optional WiFi remote monitoring, and compatibility with generators
This inverter is ideal for combining solar power, AC utility, and battery power to ensure continuous power supply. Its smart LCD display allows for easy configuration and monitoring.
