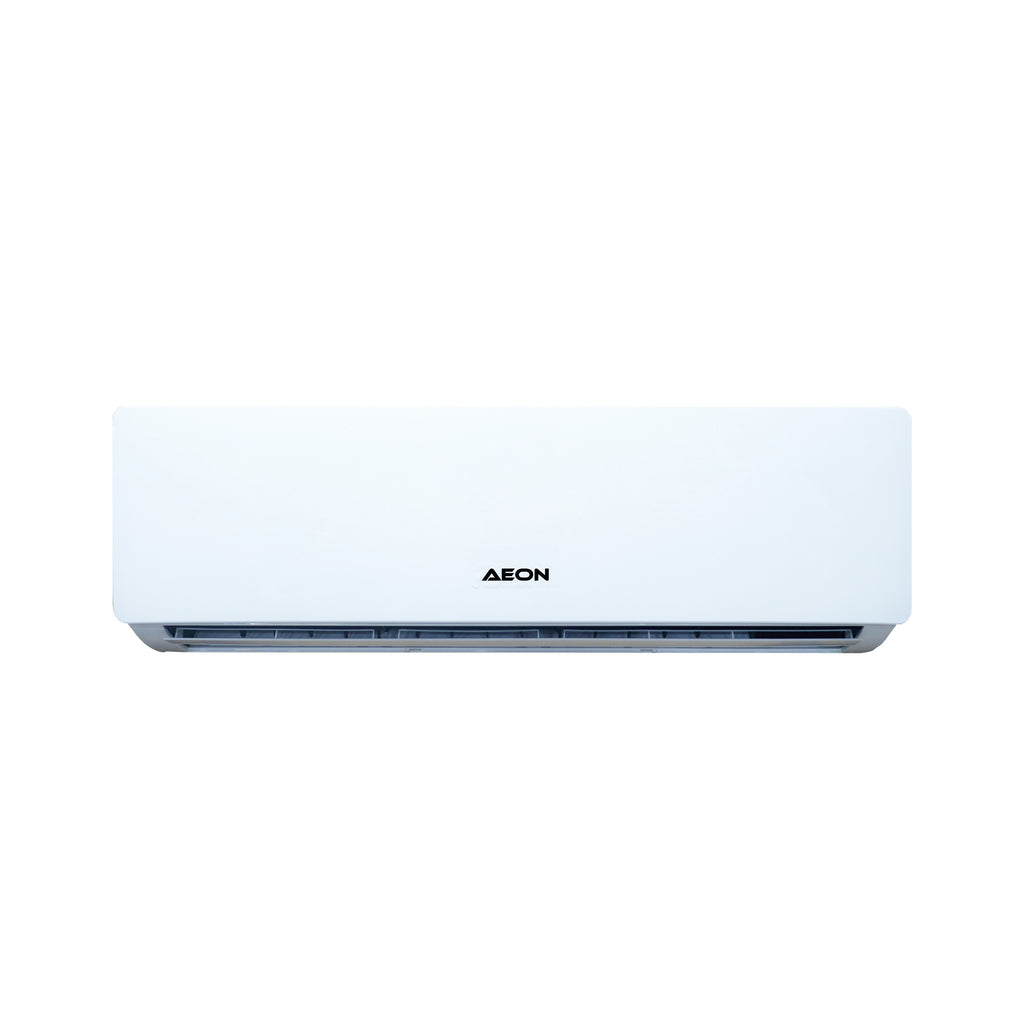

| AEON Model |
ASA09OJ1 |
|
|
| Power supply |
1Ph / 220-240V/50Hz |
| Cooling |
Capacity |
9000 |
| Input |
880 |
| Rated current |
4.12 |
| Max. input consumption |
1200 |
| Max. current |
5.74 |
| Compressor |
Type |
Rotary |
| Brand |
GMCC |
| Indoor unit |
Indoor fan motor |
Model |
YYK13-4 |
| Brand |
DONGFANG |
| Output Power |
13W |
| Capacitor |
1.5 |
| Speed (Hi/Mi/Lo) |
1200/1150/1000/900 |
| Indoor coil |
Tube pitch(a)x row pitch(b) |
21×12.7 |
| Fin spacing |
1.5 |
| Fin material |
Hydrophilic |
| Tube outside dia.and material |
φ7，inner Grooved
|
| Coil length x height x width |
522*252*12.7 |
| Indoor air flow (Hi/Mi/Lo) |
500/400/320 |
| Rated input Power(cooling/heating) |
30 |
| Rated current (cooling/heating) |
0.2 |
| Moisture Removal |
0.8 |
| Noise level(Hi/Mi/Lo) |
37/34/32 |
| Unit dimension (W*H*D) |
720X292X190 |
| Packing (W*H*D) |
785X335X240 |
| Net weight |
6.5 |
| Gross weight |
7.5 |

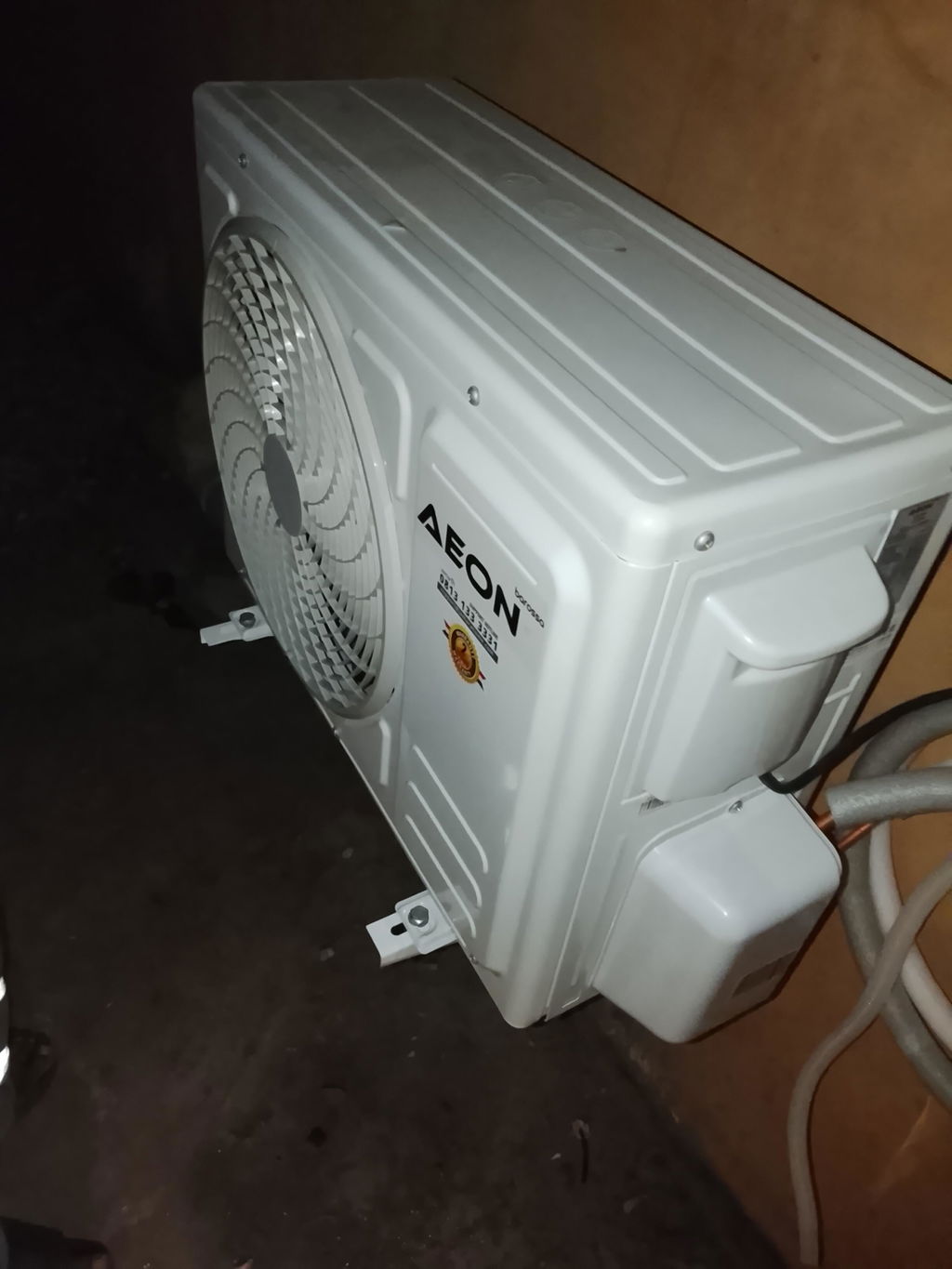

| Outdoor unit |
Outdoor fan motor |
Model |
YDK25-6 |
| Brand |
DONGFANG |
| Output Power |
25 |
| Capacitor |
2.5 |
| Speed |
860±30 |
| Outdoor coil |
Tube pitch(a)x row pitch(b) |
19×11.57 |
| Fin spacing |
1.3 |
| Fin material |
Non-hydrophilic |
| Tube outside dia.and material |
φ5，Inner Grooved
|
| Coil length x height x width |
544×462×11.57 |
| Noise level |
47 |
| Unit dimension (W*H*D) |
600×248×502 |
| Packing (W*H*D) |
745×335×550 |
| Net weight |
20.5 |
| Gross weight |
23 |
| Refrigerant type |
R410A |
| Refrigerant charge |
405 |
| Design pressure |
4.5 |
| Refrigerant pipe |
Liquid side |
Φ6 |
| Gas side |
Φ9 |
| Max. refrigerant pipe length |
10 |
| Max. difference in level |
5 |
| Operation temperature range |
16℃-43℃
|
| Ambient temperature range |
16℃-48℃
|
| Application area |
10~20 |
